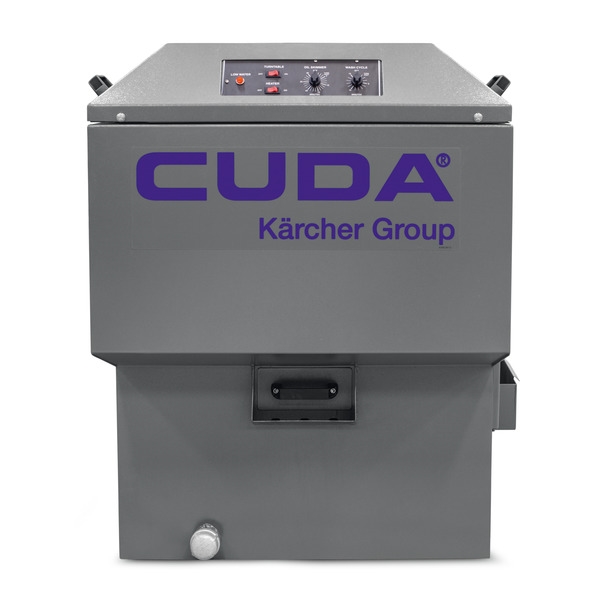

2412 SERIES

A robust starter machine.

Cuda’s 2412 series of parts washers is an attractive entry-level top-load aqueous parts washer. At only 35 inches wide, the Cuda 2412 Series parts washer has a 250-lb. load capacity, and a 24 inch turntable diameter. While boasting Cuda Series durability, it has a 1/2 HP mechanical seal with flush tube style pump and an upper drive arm that rotates the turntable. The 115V models make the 2412 especially versatile for use anywhere in the shop

Aqueous parts washers clean faster and better without
using harmful solvents!

Cuda automatic parts washers provide a safe and efficient solution to cleaning parts because they don’t use harmful cleaning solvents to clean. Our automatic parts washers also provide a time-saving, easy parts cleaning solution for your staff allowing them to simultaneously clean parts while performing other tasks.





Category:

Description

Features

  • Close Coupled Sealed Pump: 1/2 HP / 20 GPM / 22 PSI
  • 250 lbs. Load Capacity, determined with even weight distribution
  • 25 Gal. Sump Capacity
  • 4.5 kW Heater / 1.8 kW Heater for 115V model
  • Automatic Oil Skimmer
  • Low Water Shutdown
  • Casters
  • Machine: 41″L x 35″W x 45″H
  • Shipping: 55″L x 48″W x 58″H

Technical Data

Model Part # Working
Height
Turntable
Diameter
Volt/PH Total
Amps
Electric
Heater (kW)
Ship
Weight
(lbs)
Price
Standard Technical Data
2412 1.043-540.0 12″ 24″ 115/1 15 1.8 424 Ask for quote
2412 1.043-541.0 12″ 24″ 208/1 26 4.5 424 Ask for quote
2412 1.043-542.0 12″ 24″ 230/1 24 4.5 424 Ask for quote
Stainless Steel Technical Data
2412 1.043-543.0 12″ 24″ 115/1 15 1.8 424 Ask for quote
2412 1.043-544.0 12″ 24″ 208/1 26 4.5 424 Ask for quote
2412 1.043-545.0 12″ 24″ 230/1 24 4.5 424 Ask for quote

Optional Accessories

Part # Description Price
8.642-687.0 Automatic Water Fill Ask for quote
8.705-962.0 24″ Containment Ring Ask for quote
8.642-704.0 24″ Containment Ring, Stainless Steel Ask for quote
8.725-245.0 Deluxe Kit: Detail and Power Brush Ask for quote
8.725-251.0 Detail Brush with Pump Ask for quote
8.642-699.0 Pneumatic Power Brush Ask for quote
8.642-689.0 Filtration Ask for quote
8.642-690.0 Filtration, Stainless Steel Ask for quote
8.942-172.0 Oil Drain Container Ask for quote
8.915-143.0 60 Mesh Insert for Debris Screen Tray Ask for quote
8.707-034.0* Wastewater Drum Evaporator Belt (FOB Arkansas) Ask for quote
9.802-283.0 Hour Meter Ask for quote
8.642-692.0 Heater Timer, 24 hour 7 day (230V only) Ask for quote
8.642-694.0 Heater & Skimmer Timer, 24 hour 7 day Ask for quote
8.731-254.0 Light Duty Small Parts Basket (8″ X 8″ X 4″) Ask for quote
8.753-825.0 Light Duty Medium Parts Basket (16″ X 12″ X 6″) Ask for quote
