PHW

PHW

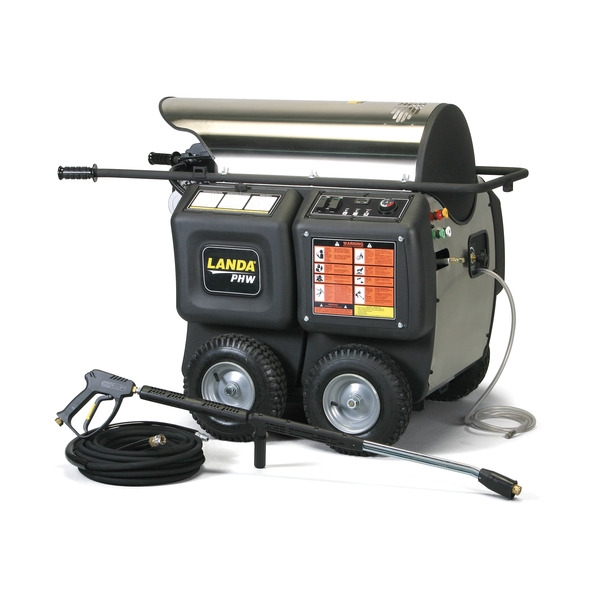

Portable, Electric-Powered, Diesel-Heated, Hot Water Pressure Washer.

For nearly three decades, the PHW has been the flagship of the Landa hot water pressure washer line. Through the years the PHW has become renowned for its quality, innovation and safety:

QUALITY: Packed with Landa quality throughout, the PHW is heated by diesel or fuel oil using a high-efficiency burner. Other quality features include: Heating coil made of Schedule 80 steel pipe; top-of-the-line, belt-drive, tri-plunger Landa pump with 7-year warranty and low RPM for extended life; detergent metering valve for convenience in adjusting the flow of the soap; and an extra rugged fuel-water separator for burner protection.

INNOVATION: The PHW has a removable tank and end panels for unrestricted access to all compo- nents. The cool bypass feature keeps water temperature low while in bypass. The balanced distribution of weight, 13″ tires and easy-grip handles make maneuvering the PHW a breeze. Snap-N-Go plugs allow the addition of time delay, auto start/stop or LanCom wireless remote options in just minutes.

SAFETY: The PHW is certified to the rigid UL-1776 safety standards and features motor thermal overload protection, a rupture disk attached to the heating coil, 24-inch hose guard, magnetic starter and water-resistant electrical control box.

Category:

Description

Features

  • Up to 8 GPM, 3000 PSI
  • Automatic Time Delay Shutdown
  • Belt-Drive Landa Pump with 7-Year Warranty
  • Steam Combination
  • LanCom Wireless Remote Control Option
  • Industrial-Strength Electric Motor with multiple voltage options and thermal overload protection
  • Rugged High-Pressure Landa Pump with three ceramic plungers and forged brass head with 7-year warranty.
  • Attractive brushed stainless steel Coil Top Wrap provides a lifetime of rust-free protection
  • New! Unitized Structural Base and Frame with removable fuel tank and end panels for unrestricted access to pump, unloader, motor, belts, and pulleys
  • New! Optional Snap-N-Go LanCom Wireless Remote controls pump, burner and detergent from up to 300 ft. away
  • New! Diagnostic Lights notify the operator of incoming power, burner ignition, and motor overload.
  • Four quick-couple Nozzles are made of hardened stainless steel and mounted for ready access.
  • High-efficiency Burner is shielded by overhanging cover and features a Fuel-Water Separator for fuel pump protection
  • New! Cool-Bypass keeps pump water temperature low while in bypass.
  • New! Large capacity 6-gallon water Float Tank with corrosion free durable PVC float
  • Insulated, fatigue-free Trigger Gun with dual-lance Variable Pressure Wand makes for easy cleaning and adjusting of pressure while washing.
  • New! Corrosion-free polyethylene Electrical Box with easy access door and control panel is pre-wired with Snap-N-Go Plugs for adding time delay, auto start/ stop or LanCom wireless remote in minutes
  • Cast-iron, bushing Pulleys with two notched “V” cogged Belts for cooler
  • New! Multi-Port Coil Discharge Manifold with built-in thermostat well and rupture disk.
  • Inlet Detergent Injection for applying soap while washing in high pressure mode.
  • 36 ft. of high-grade Electrical Cord for flexibility in maneuvering.
  • Helpful Tri-Lingual Labels with operating instructions and warnings in English, Spanish and French as well as pictograms for owner and operator protection.
  • New! 13″ Tires provide excellent mobility and weight distribution with a combined load capacity of over 1,400 lbs.
  • New! Oversized 10-gallon cross-linked polyethylene Fuel Tank with ratcheting fuel cap to avoid stripping of threads. Also includes recessed fuel level gauge
  • Many Safety Features, including a rupture disk, thermal pump protector, time delay shutdown to protect against unattended opera- tion, and Ground Fault Circuit Interrupter on 1ph models

Technical Data

Model Part # GPM PSI Motor HP Electrical Amps Pump RPM BTU / Hr L x W x H Price
PHW3-11024D 1.109-078.0 2.8 1000 2 120V 1ph 20 1725 235,000 52″ x 32″ x 38″ Ask for quote
PHW4-22024A 1.109-079.0 4.0 2200 6.2 230V 1ph 29 1025 400,000 52″ x 32″ x 38″ Ask for quote
PHW4-22024B 1.109-080.0 4.0 2200 6.2 230V 3ph 19 1025 400,000 52″ x 32″ x 38″ Ask for quote
PHW4-22024C 1.109-081.0 4.0 2200 6.2 460V 3ph 11 1025 400,000 52″ x 32″ x 38″ Ask for quote
PHW4-22024F 1.109-082.0 4.0 2200 6.2 575V 3ph 10 1025 400,000 52″ x 32″ x 38″ Ask for quote
PHW4-22024G 1.109-083.0 4.0 2200 6.2 208V 1ph 31 1025 400,000 52″ x 32″ x 38″ Ask for quote
PHW4-22024H 1.109-084.0 4.0 2200 6.2 208V 3ph 21 1025 400,000 52″ x 32″ x 38″ Ask for quote
PHW4-32024A 1.109-085.0 3.9 3000 8.2 230V 1ph 38 975 325,000 52″ x 32″ x 38″ Ask for quote
PHW4-30024B 1.109-086.0 3.9 3000 8.2 230V 3ph 29 975 325,000 52″ x 32″ x 38″ Ask for quote
PHW4-30024C 1.109-087.0 3.9 3000 8.2 460V 3ph 19 975 325,000 52″ x 32″ x 38″ Ask for quote
PHW4-30024F 1.109-088.0 3.5 3000 7.5 575V 3ph 12 975 325,000 52″ x 32″ x 38″ Ask for quote
PHW4-30024G 1.109-089.0 3.9 3000 8.2 208V 1ph 36 975 325,000 52″ x 32″ x 38″ Ask for quote
PHW4-30024H 1.109-090.0 3.9 3000 8.2 208V 3ph 26 975 325,000 52″ x 32″ x 38″ Ask for quote
PHW5-30024B 1.109-091.0 4.8 3000 10 230V 3ph 30 1500 448,000 52″ x 32″ x 38″ Ask for quote
PHW5-30024C 1.109-092.0 4.8 3000 10 460V 3ph 16 1500 448,000 52″ x 32″ x 38″ Ask for quote
