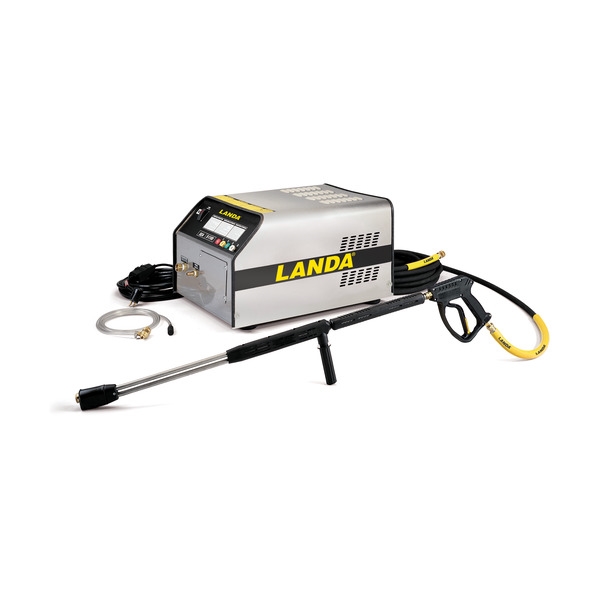

SEA

WHY CHOOSE THE SEA

This top-of-the-line stationary cold-water series features a heavy-duty stainless steel or mild steel cabinet and comes standard with an insulated variable pressure wand, 50′ of hose, and time delay shutdown. Available options include our LanCom wireless remote control, floor stand, and wall mount bracket assembly. There is even an optional wheel kit for adding mobility, making an already top-quality machine even more flexible than before. This unit is ideal for cleaning a variety of indoor surfaces, and can be plumbed for plug-and-wash outdoor applications as well.

Category: Electric

Description

Features

Up to 4.2 GPM
Up to 3000 PSI
Stainless Steel or Mild Steel Cabinet
Accepts Hot Water Up to 185° F
Industrial-Grade Motor is connected to the rugged, class-leading, tri-plunger, oil-bath LT (stainless steel model) or LM (mild steel model) High-Pressure Pump (with 7-year warranty) by dual, V-cogged belts. Pulleys are made of cast iron and can be easily adjusted by turning two bolts.
Add portability to the SEA with optional Wheel Kit (stainless steel model #8.904-527.0 or mild steel model #9.801-031.0), including detergent jug holder. Optional Hose Reel (#8.903-521.0) provides tangle-free handling of up to 100 ft. of high-pressure hose.
Four quick-couple Nozzles are made of hardened stainless steel and color-coded for easy selection of spray pattern: 0°, 15°, 25°, 40°.
Heavy-duty Cabinet rides on four Rubber Feet for absorption of vibration.
Many Safety Features, including a thermal pump protector to prevent the buildup of excessive pressures or heat.

Technical Data

Model #	Part #	Cabinet	GPM	PSI	Pump RPM	Pump	Motor HP	Volts	Phase	Amps	Price
SEA3-11024D	1.106-500.0	stainless steel	2.8	1000	1650	LB3030R	2.0	120	1	20	Ask for quote
SEA4-20024A	1.106-501.0	stainless steel	4.2	2000	1450	LT6036R.2	6.2	230	1	28	Ask for quote
SEA4-20024B	1.106-502.0	stainless steel	4.2	2000	1450	LT6036R.2	6.2	230	3	16	Ask for quote
SEA4-20024C	1.106-503.0	stainless steel	4.2	2000	1450	LT6036R.2	6.2	460	3	7.2	Ask for quote
SEA4-20024G	1.106-505.0	stainless steel	4.2	2000	1500	LT6036R.2	6.2	208	1	30	Ask for quote
SEA4-20024H	1.106-506.0	stainless steel	4.2	2000	1450	LT6036R.2	6.2	208	3	18.5	Ask for quote
SEA4-30024B	1.106-507.0	stainless steel	3.5	3000	1450	LT6036R.2	7.5	230	3	21.5	Ask for quote
SEA4-30024C	1.106-508.0	stainless steel	3.5	3000	1450	LT6036R.2	7.5	460	3	10.5	Ask for quote
SEA3-11024D	1.106-583.0	mild steel	2.8	1000	1650	LB3030R	2.0	120	1	20	Ask for quote
SEA4-20024A	1.106-584.0	mild steel	4.2	2000	1500	LM4035R.3	6.2	230	1	29	Ask for quote
SEA4-20024B	1.106-585.0	mild steel	4.2	2000	1500	LM4035R.3	6.2	230	3	11	Ask for quote
SEA4-20024C	1.106-586.0	mild steel	4.2	2000	1500	LM4035R.3	6.2	460	3	11	Ask for quote
SEA4-20024H	1.106-587.0	mild steel	4.2	2000	1500	LM4035R.3	6.2	208	3	16	Ask for quote
SEA4-30024B	1.106-588.0	mild steel	3.5	3000	1500	LM4035R.3	7.5	230	3	19	Ask for quote
SEA4-30024C	1.106-589.0	mild steel	3.5	3000	1500	LM4035R.3	7.5	460	3	11	Ask for quote

Dimensions: 31″L x 21″W x 16″H

Options & Accessories

Field Installed

Part #	Description	Price
9.801-036.0	Cox Hose Reel Kit (floor stand / wall mount)	Ask for quote
8.903-521.0	E-Zee Hose Reel & Mounting Kit (fits wheel kit)	Ask for quote
9.802-265.0	Hose Reel, Mini, (fits wall bracket, 150′ capacity)	Ask for quote
8.711-860.0	Hose Reel, Mini, (fits wall bracket, 100′ capacity)	Ask for quote
9.801-035.0	Wheel Kit (4 casters) for Floor Stands	Ask for quote
9.801-031.0	Wheel Kit with Detergent Rack	Ask for quote
8.903-040.0	24″ Floor Stand	Ask for quote
9.801-034.0	36″ Floor Stand	Ask for quote
8.903-617.0	36″ Floor Stand (stainless steel)	Ask for quote

Stainless Steel Technical Data Only

Part #	Description	Price
8.930-163.0	LanCom Wireless Remote Control, 1-Step Detergent  	Ask for quote
8.930-177.0	LanCom Wireless Remote Control, 2-Step Detergent  	Ask for quote
8.903-461.0	Remote On/Off Switch Option (Time Delay units only)  	Ask for quote
8.930-358.0	Additional LanCom Remote	Ask for quote
8.903-619.0	Wall Mount Bracket Assembly	Ask for quote
8.930-131.0	Wall Mount Bracket for Fixed LanCom Remote	Ask for quote
8.903-511.0	Auto Start/Stop (Replaces Time Delay Shutdown)  	Ask for quote
8.904-527.0	Wheel Kit with Detergent Rack (stainless steel)*	Ask for quote
8.903-448.0	Float Tank Option with Inlet Soap Injection * 	Ask for quote

Mild Steel Technical Data Only

Part #	Description	Price
9.801-011.0	Auto Start/Stop *	Ask for quote
9.801-013.0	Hour Meter 	Ask for quote
9.801-012.0	Time Delay Shutdown 	Ask for quote
9.801-033.0	Wall Mount Bracket Assembly	Ask for quote
