STINGER SPILLPAL WITH REMOVABLE FOAM SIDEWALLS

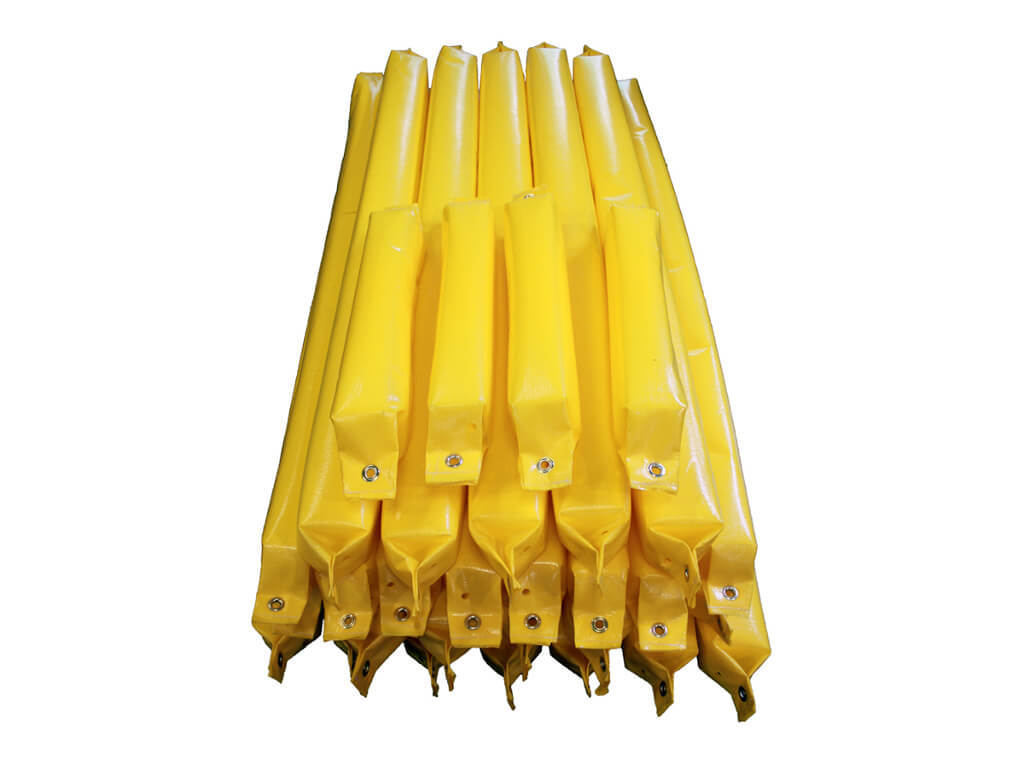

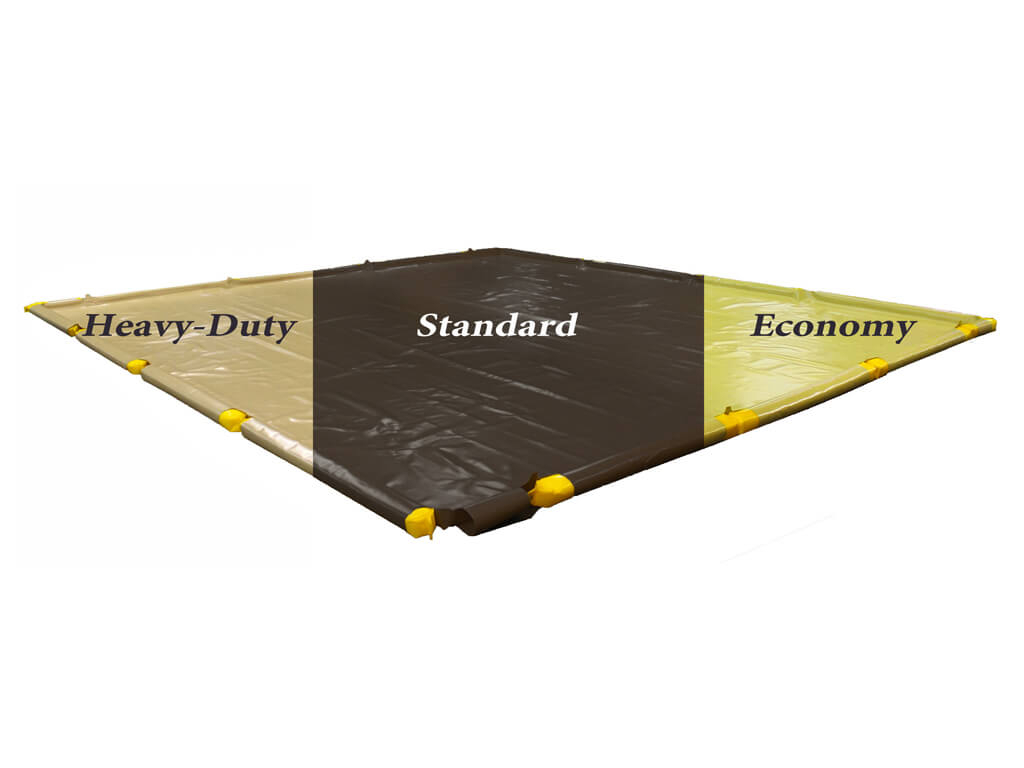

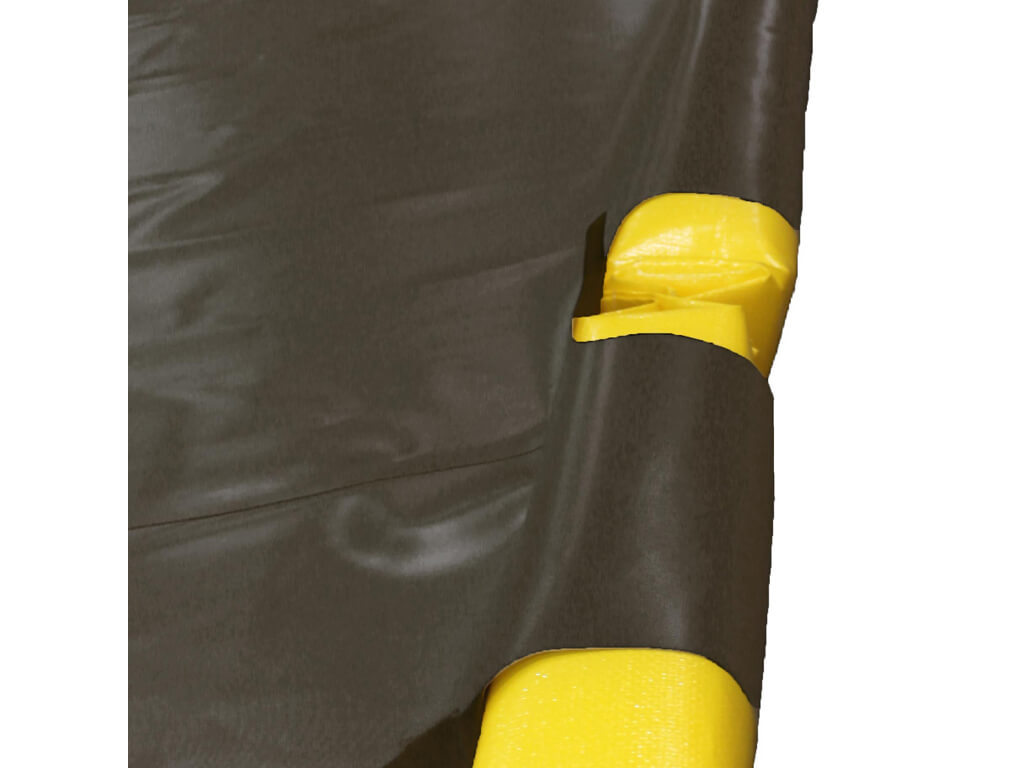

Keeping the job moving without sacrificing safety or compliance, Stinger Spillpal™ increases product versatility while featuring drive thru removable foam sidewall logs; providing protection from harsh chemicals and minimizing storage space. Available in (13) standard sizes and (3) material variations. The sturdy, user-friendly 4.5” sidewall construction incorporates high strength connectors and a two-way air relief system that facilitates entry & exit capabilities at any angle.
| Size ft. | Description | Part # | Dimensions W x L x H ft. (m) | Weight lb. (kg) | Spill Cap. gal. (L) | Ground Pad | TracMat | Price |
|---|---|---|---|---|---|---|---|---|
| 12 x 15 | Economy Standard Heavy Duty |
4901-YE 4901-BK 4901-TN |
12 x 15 x 4″ (3.7 x 4.6 x 10 cm) 12 x 15 x 4″ (3.7 x 4.6 x 10 cm) 12 x 13 x 4″ (3.7 x 4 x 10 cm) |
65 (29.5) 80 (36.3) 80 (36.3) |
505 (1,910) 505 (1,910) 438 (1,658) |
4901-GP | 4901-TM | $1,381.25 $1,987.30 $2,816.05 |
| 12 x 20 | Economy Standard Heavy Duty |
4902-YE 4902-BK 4902-TN |
12 x 21 x 4″ (3.7 x 6.4 x 10 cm) 12 x 21 x 4″ (3.7 x 6.4 x 10 cm) 12 x 19 x 4″ (3.7 x 5.8 x 10 cm) |
87 (39.5) 111 (50.3) 105 (47.6) |
707 (2,696) 707 (2,696) 640 (2,422) |
4902-GP | 4902-TM | $1,657.50 $2,528.75 $3,602.30 |
| 12 x 30 | Economy Standard Heavy Duty |
4903-YE 4903-BK 4903-TN |
12 x 33 x 4″ (3.7 x 10 x 10 cm) 12 x 33 x 4″ (3.7 x 10 x 10 cm) 12 x 30 x 4 (3.7 x 9.1 x 10 cm) |
120 (54.4) 154 (69.9) 150 (68) |
1,110 (4,201) 1,110 (4,201) 1,010 (3,823) |
4903-GP | 4903-TM | $2,295.00 $3,612.50 $4,962.30 |
| 12 x 40 | Economy Standard Heavy Duty |
4904-YE 4904-BK 4904-TN |
12 x 39 x 4″ (3.7 x 11.9 x 10 cm) 12 x 39 x 4″ (3.7 x 11.9 x 10 cm) 12 x 41 x 4″ (3.7 x 12.5 x 10 cm) |
140 (63.5) 185 (83.9) 192 (87) |
1,310 (4,958) 1,310 (4,958) 1,380 (5,223) |
4904-GP | 4904-TM | $2,816.05 $4,080.00 $6,651.25 |
| 12 x 50 | Economy Standard Heavy Duty |
4905-YE 4905-BK 4905-TN |
12 x 51 x 4″ (3.7 x 15.5 x 10 cm) 12 x 51 x 4″ (3.7 x 15.5 x 10 cm) 12 x 52 x 4″ (3.7 x 15.8 x 10 cm) |
175 (79.4) 250 (113.4) 250 (133.4) |
1,715 (6,492) 1,715 (6,492) 1,750 (6,624) |
4905-GP | 4905-TM | $3,421.00 $5,355.00 $8,319.80 |
| 12 x 60 | Economy Standard Heavy Duty |
4906-YE 4906-BK 4906-TN |
12 x 63 x 4″ (3.7 x 19.2 x 10 cm) 12 x 63 x 4″ (3.7 x 19.2 x 10 cm) 12 x 63 x 4 (3.7 x 19.2 x 10 cm) |
220 (99.8) 280 (127) 300 (136.1) |
2,121 (8,029) 2,121 (8,029) 2,121 (8,029) |
4906-GP | 4906-TM | $3,782.00 $5,992.00 $9,700.00 |
| 24 x 40 | Economy Standard Heavy Duty |
4907-YE 4907-BK 4907-TN |
24 x 39 x 4″ (7.3 x 11.9 x 10 cm) 24 x 39 x 4″ (7.3 x 11.9 x 10 cm) 24 x 41 x 4″ (7.3 x 12.5 x 10 cm) |
235 (106.6) 310 (140.6) 330 (149.7) |
2,626 (9,940) 2,626 (9,940) 2,760 (10,448) |
4907-GP | 4907-TM | $4,675.00 $7,395.00 $11,623.00 |
| 24 x 50 | Economy Standard Heavy Duty |
4908-YE 4908-BK 4908-TN |
24 x 51 x 4″ (7.3 x 15.5 x 10 cm) 24 x 51 x 4″ (7.3 x 15.5 x 10 cm) 24 x 52 x 4″ (7.3 x 15.8 x 10 cm) |
285 (129.3) 390 (176.9) 410 (186) |
3,434 (12,999) 3,434 (12,999) 3,501 (13,253) |
4908-GP | 4908-TM | $5,652.50 $8,851.00 $15,045.00 |
| 24 x 60 | Economy Standard Heavy Duty |
4909-YE 4909-BK 4909-TN |
24 x 63 x 4″ (7.3 x 19.2 x 10 cm) 24 x 63 x 4″ (7.3 x 19.2 x 10 cm) 24 x 63 x 4″ (7.3 x 19.2 x 10 cm) |
345 (156.5) 470 (213) 485 (220) |
4,241 (16,053) 4,241 (16,053) 4,241 (16,053) |
4909-GP | 4909-TM | $7,055.00 $10,976.00 $18,381.00 |
| 36 x 40 | Economy Standard Heavy Duty |
4910-YE 4910-BK 4910-TN |
36 x 39 x 4″ (11 x 11.9 x 10 cm) 36 x 39 x 4″ (11 x 11.9 x 10 cm) 36 x 41 x 4″ (11 x 12.5 x 10 cm) |
290 (131.5) 410 (186) 435 (197.3) |
3,939 (14,911) 3,939 (14,911) 4,140 (15,672) |
4910-GP | 4910-TM | $8,023.00 $10,433.00 $17,467.00 |
| 36 x 50 | Economy Standard Heavy Duty |
4911-YE 4911-BK 4911-TN |
36 x 51 x 4″ (11 x 15.5 x 10 cm) 36 x 51 x 4″ (11 x 15.5 x 10 cm) 36 x 52 x 4″ (11 x 15.8 x 10 cm) |
390 (176.9) 530 (240.4) 555 (251.7) |
5,150 (19,495) 5,150 (19,495) 5,251 (19,877) |
4911-GP | 4911-TM | $8,341.00 $12,952.00 $21,452.00 |
| 36 x 60 | Economy Standard Heavy Duty |
4912-YE 4912-BK 4912-TN |
36 x 63 x 4″ (11 x 19.2 x 10 cm) 36 x 63 x 4″ (11 x 19.2 x 10 cm) 36 x 63 x 4″ (11 x 19.2 x 10 cm) |
500 (226.8) 650 (294.8) 670 (303.9) |
6,362 (24,083) 6,362 (24,083) 6,362 (24,083) |
4912-GP | 4912-TM | $10,062.00 $15,725.00 $25,500.00 |
| 48 x 60 | Economy Standard Heavy Duty |
4913-YE 4913-BK 4913-TN |
48 x 63 x 4″ (14.6 x 19.2 x 10 cm) 48 x 63 x 4″ (14.6 x 19.2 x 10 cm) 48 x 63 x 4″ (14.6 x 19.2 x 10 cm) |
640 (290.2) 831 (376.9) 855 (387.8) |
8,483 (32,112) 8,483 (32,112) 8,483 (32,112) |
4913-GP | 4913-TM | $12,187.00 $19,656.00 $32,895.00 |
Can’t find the size you need? We offer unlimited custom sizes and materials upon request.
The berm capacity is based on dimensions, low flow rate, a level surface and no displaced volume.
Sizes are nominal, dimensions reflect containment area.
