2840 SERIES

2840 SERIES

A step up in compact parts washing capability.

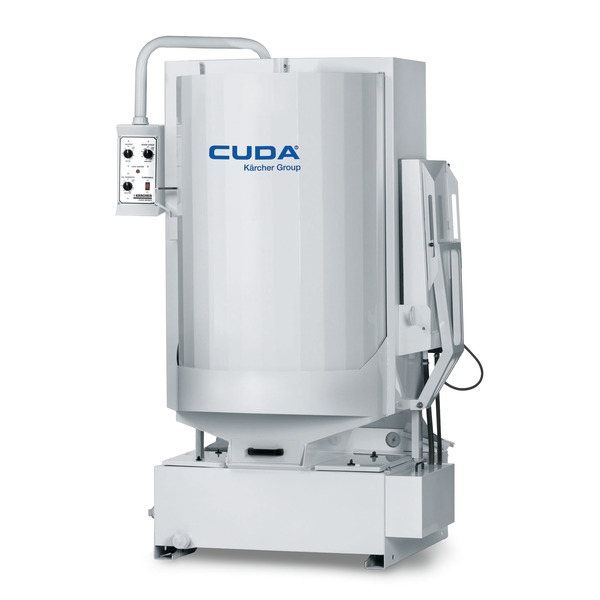

The Cuda 2840 is the next step up in the compact front-load automatic parts washer models. The 2840 features a turntable diameter of 28-inches, working height of 40-inches, and load capacity of 1000 lbs. The 2840 Series is equipped with a 3 HP vertical seal-less pump producing 50 GPM at 45 PSI

Aqueous parts washers clean faster and better without
using harmful solvents!

Cuda automatic parts washers provide a safe and efficient solution to cleaning parts because they don’t use harmful cleaning solvents to clean. Our automatic parts washers also provide a time-saving, easy parts cleaning solution for your staff allowing them to simultaneously clean parts while performing other tasks.

Category:

Description

Features

  • Vertical / Seal-less Pump: 3 HP / 50 GPM / 45 PSI
  • 1,000 Lbs. Load Capacity, determined with even weight distribution
  • 50 Gal. Sump Capacity
  • 6 kW Heater
  • Automatic Oil Skimmer
  • Low Water Shutdown
  • Machine: 51″L x 50″W x 80″H
  • Shipping: 66″L x 57″W x 95″H

Technical Data

Model Part # Working
Height		 Turntable
Diameter		 Volt/PH Total
Amps		 Ship
Weight (lbs)		 Price
Standard Technical Data
2840 1.043-395.0 40″ 28″ 230/1 38 1100 Ask for quote
2840 1.043-416.0 40″ 28″ 208/1 42 1100 Ask for quote
2840 1.043-418.0 40″ 28″ 230/3 23 1100 Ask for quote
2840 1.043-417.0 40″ 28″ 208/3 25 1100 Ask for quote
2840 1.043-419.0 40″ 28″ 460/3 11 1100 Ask for quote
2840 1.043-420.0 40″ 28″ 575/3 9 1100 Ask for quote
Stainless Steel Technical Data
2840 1.043-492.0 40″ 28″ 230/1 38 1100 Ask for quote
2840 1.043-493.0 40″ 28″ 208/1 42 1100 Ask for quote
2840 1.043-498.0 40″ 28″ 230/3 23 1100 Ask for quote
2840 1.043-494.0 40″ 28″ 208/3 25 1100 Ask for quote
2840 1.043-496.0 40″ 28″ 460/3 11 1100 Ask for quote
2840 1.043-497.0 40″ 28″ 575/3 9 1100 Ask for quote

Optional Accessories

Part # Description Price
8.915-113.0 Automatic Water Fill Ask for quote
8.705-957.0 28″ Containment Ring Ask for quote
8.915-378.0 Filtration Ask for quote
8.915-379.0 Filtration & Sump Sweep Ask for quote
8.915-316.0 60 Mesh Insert for Debris Screen Tray Ask for quote
8.915-124.0 4 Hook Parts Tree Ask for quote
8.725-267.0 Heater Timer, 24 hour 7 day Ask for quote
8.725-268.0 Heater & Skimmer Timer, 24 hour 7 day Ask for quote
8.707-034.0 Wastewater Drum Evaporator Belt Ask for quote
8.901-881.0 Deluxe Kit: Detail and Power Brush with Side Sink and Side Sump Ask for quote
8.915-351.0 Two-Tier Turntable Ask for quote
8.922-951.0 Stainless Steel Handle Kit, assembled Ask for quote
8.924-172.0 Oil Drain Container Ask for quote
9.802-283.0 Hour Meter Ask for quote
8.915-585.0 PK-100D Sump Cleaner Ask for quote
8.709-145.0 PK-100D Filter Bag Ask for quote
8.731-254.0 Light Duty Small Parts Basket (8″ x 8″ x 4″) Ask for quote
9.102-237.0 Lid for Light Duty Small Parts Basket Ask for quote
8.753-825.0 Light Duty Medium Parts Basket (16″ x 12″ x 6″) Ask for quote
9.102-230.0 Lid for Light Duty Medium Parts Basket Ask for quote
8.723-214.0 Gray Spray Paint Ask for quote

♦ Require Light Duty Smalls Parts Basket and Containment Ring sold separately, not for height extended machines
