Simply immaculate a yard at a time.

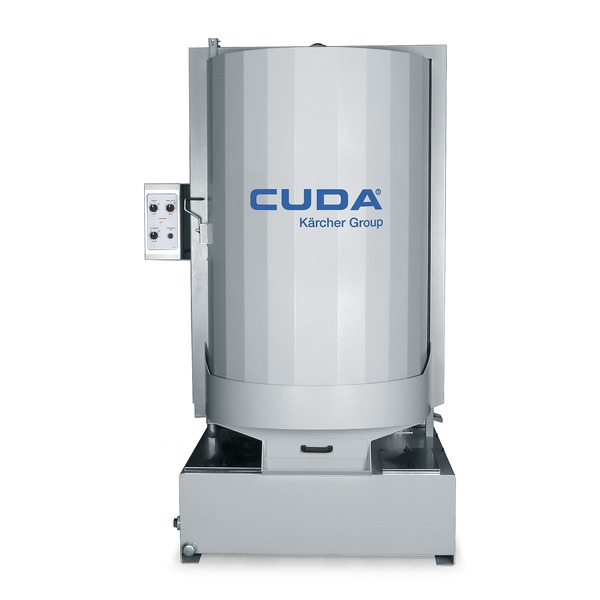

The Cuda 3648 features a turntable diameter of 36-inches, working height of 48-inches, and load capacity of 2500 lbs. The 3648 Series is equipped with a 7.5 HP vertical seal-less pump producing 150 GPM at 50 PSI, and has a 113-gallon sump capacity. It also includes upgraded features such as a more durable control panel, easier to replace handle, stainless steel sump covers, and external plumbing making it the easiest to maintain Cuda yet!
Aqueous parts washers clean faster and better without
using harmful solvents!
Cuda automatic parts washers provide a safe and efficient solution to cleaning parts because they don’t use harmful cleaning solvents to clean. Our automatic parts washers also provide a time-saving, easy parts cleaning solution for your staff allowing them to simultaneously clean parts while performing other tasks.
Features
| Model | Part # | Working Height |
Turntable Diameter |
Volt/PH | Total Amps |
Ship Weight (lbs) |
Price |
|---|---|---|---|---|---|---|---|
| Standard Technical Data | |||||||
| 3648 | 1.043-477.0 | 48″ | 36″ | 230/3 | 58 | 1770 | Ask for quote |
| 3648 | 1.043-478.0 | 48″ | 36″ | 460/3 | 32 | 1770 | Ask for quote |
| 3648 | 1.043-479.0 | 48″ | 36″ | 575/3 | 28 | 1770 | Ask for quote |
| Stainless Steel Technical Data | |||||||
| 3648 | 1.043-507.0 | 48″ | 36″ | 230/3 | 58 | 1770 | Ask for quote |
| 3648 | 1.043-506.0 | 48″ | 36″ | 460/3 | 32 | 1770 | Ask for quote |
| 3648 | 1.043-505.0 | 48″ | 36″ | 575/3 | 28 | 1770 | Ask for quote |
| Part # | Description | Price |
|---|---|---|
| 8.749-394.0 | Automatic Water Fill | Ask for quote |
| 8.753-767.0 | 36″ Containment Ring | Ask for quote |
| 8.921-972.0 | 2 Stage Filtration | Ask for quote |
| 8.921-973.0 | 2 Stage Filtration & Sump Sweep | Ask for quote |
| 8.749-395.0 | 60 Mesh for Debris Screen Tray Insert | Ask for quote |
| 8.749-396.0 | 4 Hooks Parts Tree | Ask for quote |
| 8.921-971.0 | Two-Tier Turntable ♦ | Ask for quote |
| 8.725-267.0 | Heater Timer 24 hour 7 day | Ask for quote |
| 8.725-268.0 | Heater Timer & Skimmer 24 hour 7 day | Ask for quote |
| 8.749-397.0 | Deluxe Kit: Detail and Power Brush with Side Sink and Side Sump | Ask for quote |
| 8.922-951.0 | Stainless Steel Handle Kit, assembled | Ask for quote |
| 8.924-172.0 | Oil Drain Container | Ask for quote |
| 9.802-283.0 | Hour Meter | Ask for quote |
| 8.915-585.0 | PK-100D Sump Cleaner | Ask for quote |
| 8.709-145.0 | PK-100D Filter Bag | Ask for quote |
| 8.707-034.0 | Wastewater Drum Evaporator Belt | Ask for quote |
| 8.731-254.0 | Light Duty Small Parts Basket (8″ X 8″ X 4″) | Ask for quote |
| 9.102-237.0 | Lid for Light Duty Small Parts Basket | Ask for quote |
| 8.753-825.0 | Light Duty Medium Parts Basket (16″ X 12″ X 6″) | Ask for quote |
| 9.102-230.0 | Lid for Light Duty Medium Parts Basket | Ask for quote |
| 8.723-214.0 | Gray Spray Paint | Ask for quote |
♦ Requires Light Duty Small Parts Basket and Containment Ring sold separately, not for height extended machines.
