It’s all in the detail.

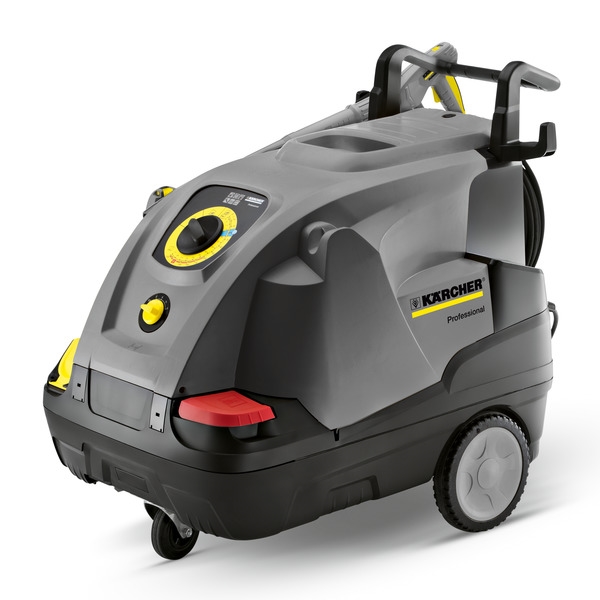

Kärcher’s German-built electric hot water machines are the most advanced on the market, featuring Kärcher’s patented axial pump integrated with a 2-pole motor for optimum efficiency. Kärcher’s efficient and compact downdraft-fired burner uses far less fuel than standard heat exchangers. Units come standard with low-fuel shut-off, low-water protection, high-temperature shut-off, thermal overload protection, EASY!Force gun, and 50’ hose. All units are ETL certified to UL and CSA standards.

Category:

Description

Features

  • eco!efficiency mode ¨ economical and environmentally friendly, even during longer periods of use, and this mode reduces fuel consumption and CO2 emissions by 20%
  • Robust wheels and steering mechanism for maneuverability
  • Large integrated handles in the chassis
  • Integrated tilting aid for effortlessly negotiating obstacles such as steps and curves

Technical Data

Model Part # GPM PSI Drive HP Electrical Amps Pump Ship
Dimensions
Inches		 Price
HDS 2.3/12 C Ed 1.272-901.0 2.3 1100 Direct 2.8 110-120V / 1ph 18.5 Kärcher Axial 40 x 28 x 41 Ask for quote
HDS 3.0/20 C Ea 1.170-903.0 1.3-2.9 460-2000 Direct 5.6 220-240 / 1ph 18.5 Kärcher Axial 40 x 28 x 41 Ask for quote

Accessories

Part # Description List Price
♦ 4.118-005.0* EASY!Force trigger gun (German model) – zero force required. $62.00
♦ 4.112-000.0* 41″ spray lance $19.90
♦ 6.110-030.0* High pressure hose, 15m (50′), both sides Easy!Lock, ID 8 $110.00
♦ 4.117-037.0* Triple jet nozzle, 050 (for machine 1.272-901.0) $103.00
♦ 2.113-007.0* Power nozzle, 042 (for machine 1.170-903.0) $21.60
◊ 4.111-041.0* Adapter for Easy!Force trigger gun connection to 3/8″ hose $21.80

♦ Included  ◊ Optional * Compatible with EASY!Lock
