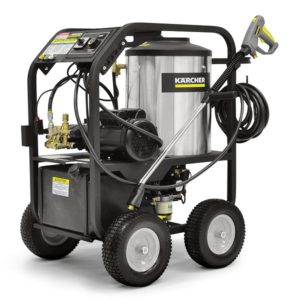

HDS HAND TRUCK

Heavy-duty output.
Kärcher’s North American hand truck design features heavy-gauge 1 1/4″ steel frame with powder coat finish and a high pressure rupture disc rated to 7000 lbs to protect the operator against injury. Units come with belt-drive Kärcher crankcase pumps. All models are ETL certified to UL and CSA safety standards.

Category: Electric

Description

Features

Cast iron pulley system with OSHA-compliant, totally enclosed belt guard, and easy-to-adjust belt tension (belt-drive models).
Water resistant control box, burner on/off switch and adjustable thermostat
EASY!Force gun with cruise control like technology – uses its own recoil force to hold the trigger down – so, no more sore hands after hours of use

Technical Data

Model	Part #	GPM	PSI	Drive	HP	Electrical	Amps	Pump	Ship Weight (lbs)	Ship Dimensions Inches	Price
HDS 3.9/20 Ea	1.575-505.0	3.9	2000	Belt	6	230V / 1ph	29	Kärcher KM	660	49 x 40 x 50	Ask for quote
HDS 3.5/30 Ea	1.575-508.0	3.5	3000	Belt	7.5	230V / 1ph	36	Kärcher KM	690	49 x 40 x 50	Ask for quote
HDS 3.5/30 Eb	1.575-509.0	3.5	3000	Belt	7.5	230V / 3ph	25	Kärcher KM	605	49 x 40 x 50	Ask for quote
HDS 3.5/30 Ec	1.575-510.0	3.5	3000	Belt	7.5	460V / 3ph	13	Kärcher KM	605	49 x 40 x 50	Ask for quote

Accessories

Part #	Description	List Price
♦ 8.756-481.0	EASY!Force trigger gun (North American Model) – zero force required. Standard 1/4″ connection for wand, 3/8″ connection for hose.	$81.00

♦ Included ◊ Optional

Options

Factory Installed

Part #	Description	List Price
◊ 9.801-008.0	Float tank (6-7.5 HP units, with soap valve)	$440.00
◊ 9.801-006.0	Auto start/stop (6-7.5 HP technical)	$365.00
◊ 9.804-512.0	Auto start/stop and steam combo (6-7.5 HP technical)	$610.00
◊ 9.804-513.0	Auto start/stop and float tank (6-7.5 HP technical)	$985.00
◊ 9.804-514.0	Auto start/stop, steam and float tank (6-7.5 HP technical)	$1,175.00
◊ 9.804-515.0	Steam combination (6-7 HP, with float tank)	$215.00
◊ 9.801-009.0	Steam combination (6-7 HP, without float tank)	$165.00
◊ 9.801-001.0	Time delay	$365.00
