L-Bracket Berm
Enpac L-Bracket Berm
YOUR LOW COST SOLUTION FOR ALL FLEXIBLE CONTAINMENT NEEDS

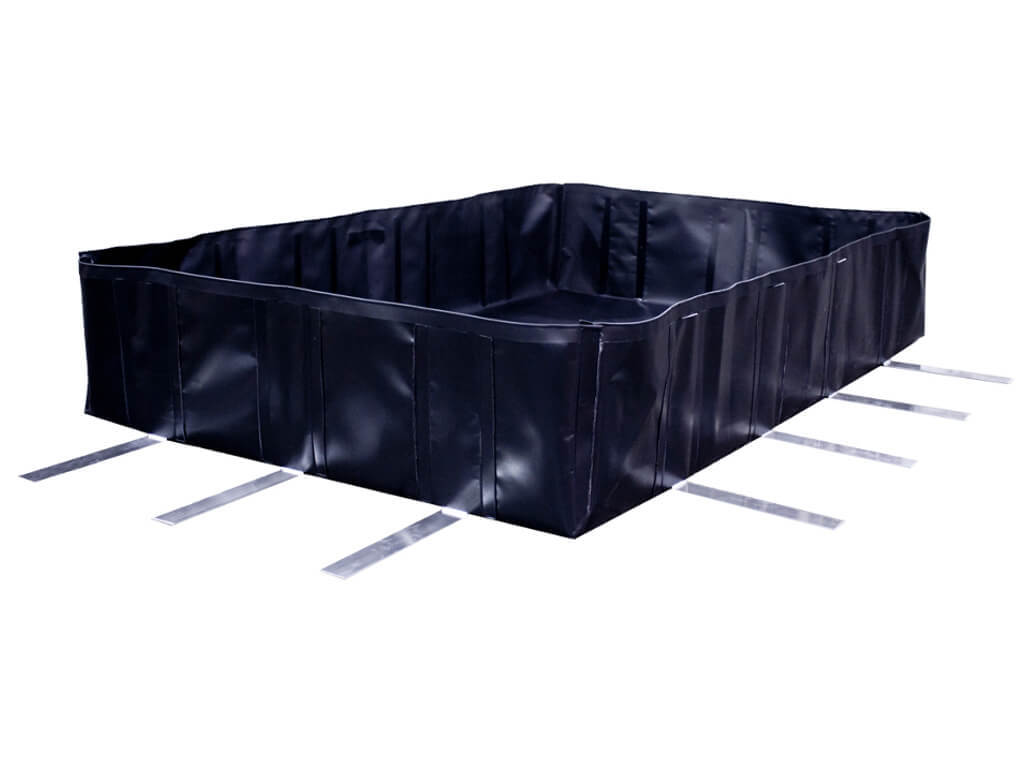

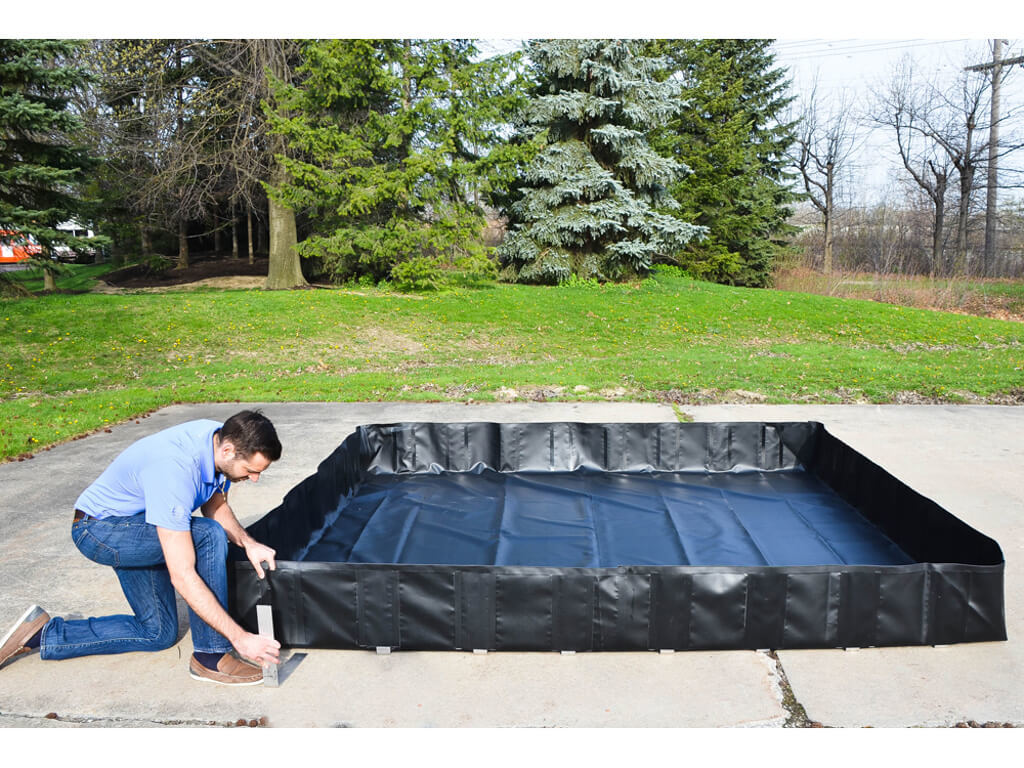

The light, yet durable fabric and 12” supports allow for efficient transportation, convenient setup, and easy tear-down. Versatile engineering allows setup to be customized to user’s preference. Depending on your unique setup, stays can be turned in or out for ultimate convenience. The L-bracket Berm is the perfect, low cost, low profile solution for your flexible containment needs. The new L-bracket berm, featuring a highly chemically resistant fabric and removable aluminum stays, creates a cost effective alternative to comparable products.
BLACK DIAMOND ECONOMY L-BRACKET BERM
In a word, or four – Simple, Rugged, Quick, Inexpensive. The Black Diamond Economy L-Bracket Berm is engineered to be rugged, yet features quick, simple setup and was designed with your budget in mind. Don’t sacrifice form and function for price when the best of both is right in front of you.
Description
ENPAC L-BRACKET BERMS
*Custom sizes are available upon request
| Part # |
Dimensions W x L x H ft. (m) |
Weight lb. (kg) |
Spill Cap. gal. (L) |
Price |
| 48-441-AS |
4 x 4 x 1 (1.2 x 1.2 x 30cm) |
16 (7.3) |
119 (450) |
$308.75 |
| 48-461-AS |
4 x 6 x 1 (1.2 x 1.8 x 30cm) |
20 (9.1) |
179 (677) |
$372.00 |
| 48-551-AS |
5 x 5 x 1 (1.5 x 1.5 x 30cm) |
22 (10) |
187 (707) |
$425.00 |
| 48-661-AS |
6 x 6 x 1 (1.8 x 1.8 x 30cm) |
25 (11.3) |
269 (1018) |
$478.00 |
| 48-861-AS |
8 x 6 x 1 (2.4 x 1.8 x 30cm) |
33 (15) |
359 (1358) |
$532.00 |
| 48-10101-AS |
10 x 10 x 1 (3 x 3 x 30cm) |
54 (24.5) |
748 (2831) |
$637.00 |
| 48-12201-AS |
12 x 20 x 1 (3.7 x 6.1 x 30cm) |
108 (49) |
1795 (6794) |
$1,275.00 |
| 48-12301-AS |
12 x 30 x 1 (3.7 x 9.1 x 30cm) |
155 (70.3) |
2692 (10190) |
$1,806.00 |
| 48-12401-AS |
12 x 40 x 1 (3.7 x 12.2 x 30cm) |
200 (90.7) |
3590 (13589) |
$2,125.00 |
| 48-12501-AS |
12 x 50 x 1 (3.7 x 15.24 x 30cm) |
250 (113.4) |
4488 (16988) |
$2,550.00 |
| 48-12601-AS |
12 x 60 x 1 (3.7 x 18.3 x 30cm) |
295 (133.8) |
5385 (20384) |
$3,187.00 |
The berm capacity is based on dimensions, low flow rate, a level surface and no displaced volume.
BLACK DIAMOND ECONOMY L-BRACKET BERM
| Part # |
Dimensions W x L x H ft. (m) |
Weight lb. (kg) |
Spill Cap. gal. (L) |
Price |
| BD-44-AL-L |
4x4x1 (1.2×1.2×0.3) |
16 (7.3) |
119 (450) |
$318.75 |
| BD-55-AL-L |
5x5x1 (1.5×1.5×0.3) |
22 (10) |
187 (707) |
$340.00 |
| BD-68-AL-L |
6x8x1 (1.8×2.4×0.3) |
33 (15) |
359 (1358) |
$413.95 |
| BD-1010-AL-L |
10x10x1 (3x3x0.3) |
54 (24.5) |
748 (2831) |
$531.25 |
| BD-1020-AL-L |
10x20x1 (3×6.1×0.3) |
108 (49) |
1496 (5662) |
$850.00 |
| BD-1030-AL-L |
10x30x1 (3×9.1×0.3) |
155 (70.3) |
2244 (8494) |
$1,051.45 |
| BD-1040-AL-L |
10x40x1 (3×12.2×0.3) |
200 (90.7) |
2992 (11325) |
$1,476.45 |
| BD-1050-AL-L |
10x50x1 (3×15.2×0.3) |
245 (109) |
3740 (14157) |
$1,688.95 |
| BD-1060-AL-L |
10x60x1 (3×18.3×0.3) |
290 (131.5) |
4488 (16988) |
$1,806.25 |
| BD-1212-AL-L |
12x12x1 (3.7×3.7×0.3) |
99 (44.91) |
1077 (4076) |
$602.00 |
Accessories
Rainwater intrusion can be a costly nuisance when it comes to outdoor containment options. Avoid expensive vac trucks to clean out your berm or spill pallet when it fills with minimally contaminated rainwater. The Bazooka is both a trickle filter and automatic shut off valve using Drainiac technology to capture and contain oils & fuels while letting clean water pass through. The filter media swells as it absorbs hydrocarbons before shutting off to prevent environmental damage. This installation kit contains everything need to retrofit your containment berm with the BAZOOKA system.
- 56-gallon per hour flow rate
- Pre-filter prevents debris from entering drain
- Maintenance free
- Replacement filter cartridge available
- Allows water to pass from containment sump while capturing hydrocarbons
| Part # |
Description |
Dimensions |
Spill Cap. |
Price |
| BAZOOKA-12KIT |
Bazooka & Installation Kit |
15″ L x 4″ W x 4″ H |
56 gph |
$531.25 |
| BAZOOKA |
Bazooka Replacement Cartridge |
7″ L x 4″ W x 4″ H |
56 gph |
$436.05 |
