Description

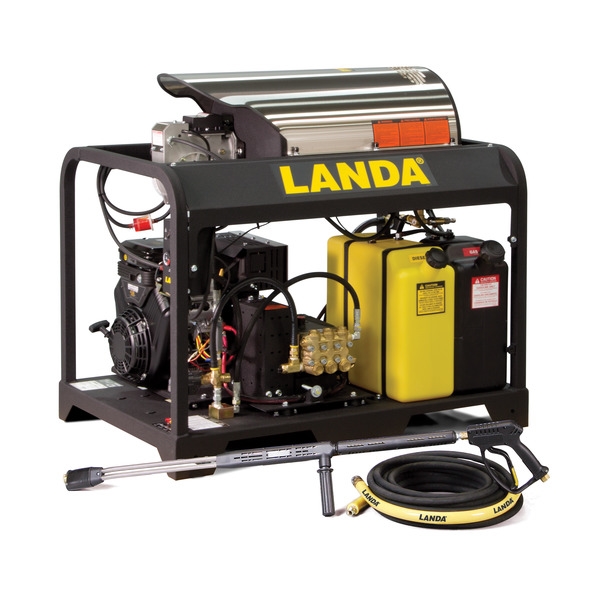

Features
- Up to 8.0 GPM; Up to 3500 PSI
- Heavy-Duty Honda or Vanguard Engines
- Belt-Drive Pump with 7‑Year Warranty
- Rugged tri-plunger High-Pressure Pump with forged brass head and 7‑year warranty, is connected to the engine by a belt drive assembly that features cast-iron bushing Pulleys and two notched “V” cogged belts, which provide a cooler operation and longer life; also single-rail true track Pulley Adjustment makes it easy to alter the belt tension.
- Industrial-duty Gasoline-Powered Honda or Vanguard engine with overhead valves and easyaccess oil drain line; all have keyed Electric Start.
- Power Platform is mounted on vibration isolators, which extends the life of the key components.
- High-efficiency, 12VDC Burner is mounted on the end for ease of servicing and adjustments.
- Conveniently located Control Panel with burner on/off switch, monitor light and optional hour meter for maintenance monitoring.
- Optional rust-free Float Tank with stainless steel inlet filter provides backflow protection and inlet Detergent Injection for applying soap while washing in high pressure mode.
- Unique lift-out design allows for easy and quick Coil Access. Remove six bolts and the cover lifts off exposing the coil.
- Four quick-couple Nozzles are made of hardened stainless steel and are mounted for quick access.
- EASY!Force trigger gun with cruise control like technology uses its own recoil force to hold the trigger down – so, no more sore hands after hours of use. Variable Pressure Wand make it easy to switch between wash and rinse modes.
- 50 ft. of 3/8″, double-wire braid Hose rated for up to 6000 PSI and featuring a 24‑inch Hose Guard for burst protection
- Helpful Tri-Lingual Labels with operating instructions in English, Spanish and French for owner and operator protection.
- Rugged, 11/2-inch square tube Open-Air Frame with Forklift Guides allows easy access and serviceability and is protected by an all-weather resistant Epoxy Powder Coat Finish
- Fuel Filter prevents debris in diesel from damaging the burner fuel pump.
- Color-coded, polyethylene Fuel Tanks for gasoline (5 gallon) and diesel (10 gallon) are translucent for monitoring fuel level and have elevated fuel lines to prevent debris from damaging the burner. (PGDC4-35324E has 1.5 gallon gasoline tank)
- Durable polyurethane Battery Box protects battery and is in easily accessible location. (battery not included)
- Many Safety Features, including a rupture disk, thermal pump protector and high-temperature shutoff to guard against any buildup of excessive pressure or heat.
